used
bandwidth 90 mm, masses 0.8 x 0.8 x 2.2 m , Btto 320 kg/ pcs
used

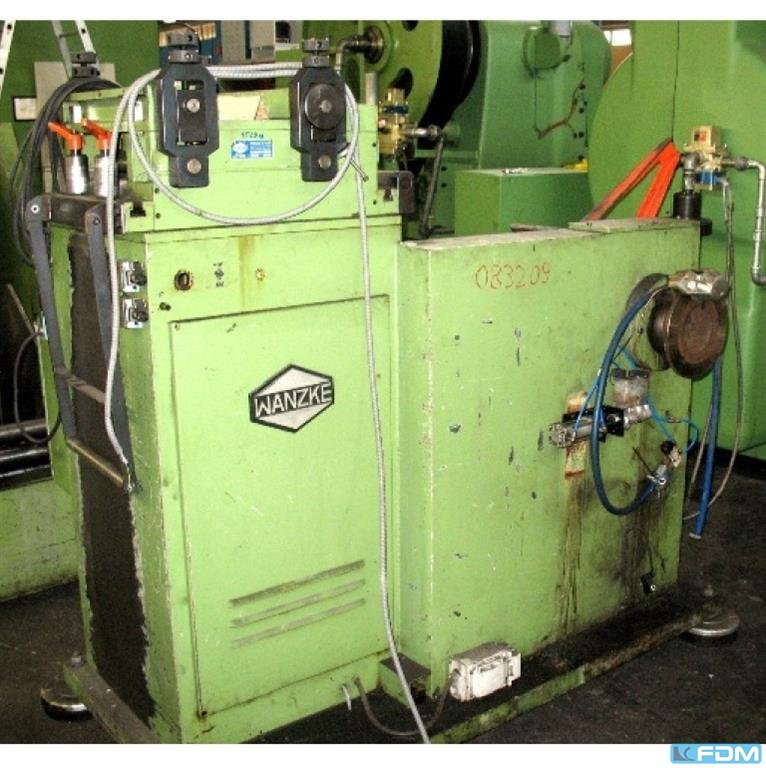

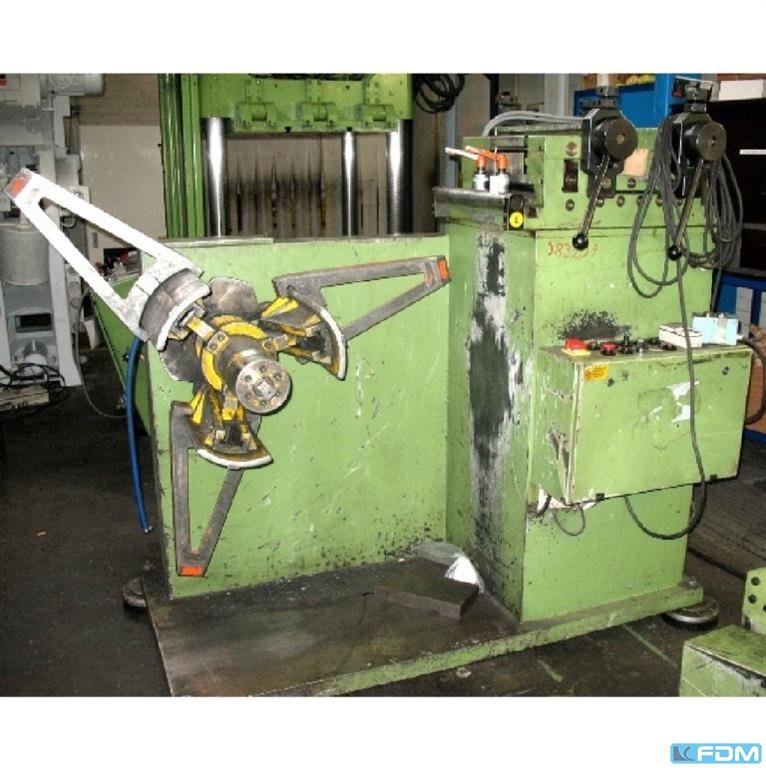

Tech. Data VS 4 maximum strip width 250 mm, maximum advance length 400 mm Max band thickness 2.5 mm maximum band cross-section 600 mm2 Holding power sled pliers - up to 1,6 t Holding force holding pliers - up to 1 t Thrust - up 0.4 t Damping - hydraulic Feed accuracy +-0.01 mm (distance) Tech. Data VS 3 Max. Band width 160 mm maximum advance length 230 mm Max. Band thickness 2.5 mm, max. band cross-section 400 mm2 Holding force slide clamp up to 900 kg Holding pliers up to 600 kg, feed capacity 240 kg complete with instructions, control, cam
used
Decoiler Coil weight: 2,5 ton Material width: 50 - 500 mm Coil exterior diameter: 1400 mm Expansion range: 420 - 520 mm Leveller / Straightener Material width : 500 mm Number of levelling rolls: 9 pcs. Diameter of the levelling rolls: 50 mm Number of pinch rolls: 2 pcs. Material thickness: 6 mm Cross section: 3000 sq mm Feeding speed: 6 - 24 m / min
used
material width:300 mm coil weight:0,5 t material thickness:0,4 - 3,0 mm coil internal diameter:420 - 520 mm coil external diameter:1200 mm no. of straightening rolls:9 straightening roll diameter:50 mm number of draw-in rolls:2 diameter of draw-in rolls:50 mm power requirement:1,5 kW weight:1,55 t dimensions (WxDxH):2,5 x 1,2 x 1,8 m
used
material width:300 mm coil weight:0,5 t coil internal diameter:420 - 520 mm coil external diameter:1400 mm weight:0,6 t dimensions (WxDxH):0,8 x 1,2 x 1,7 m expansion:pneumatic
used

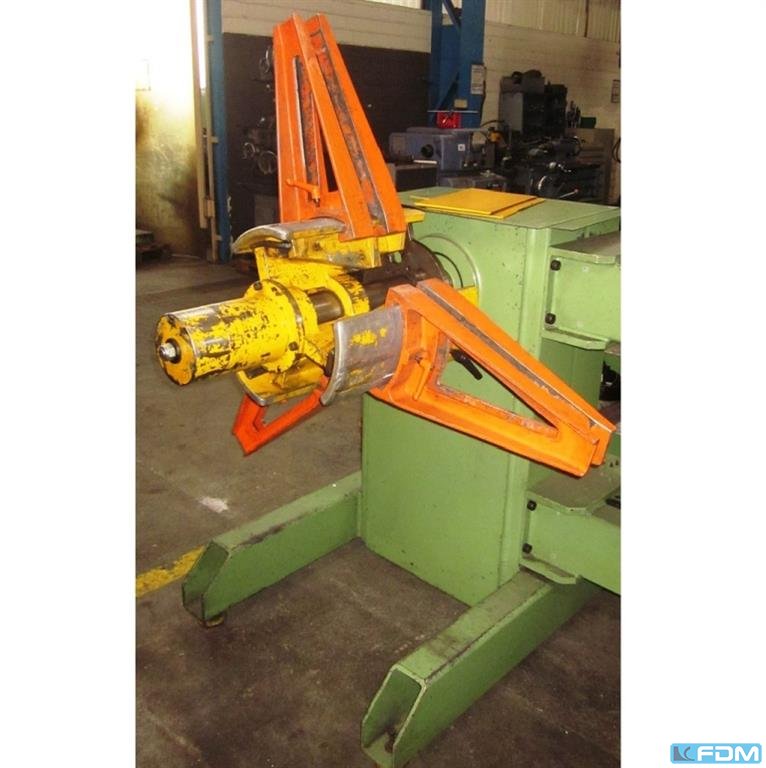

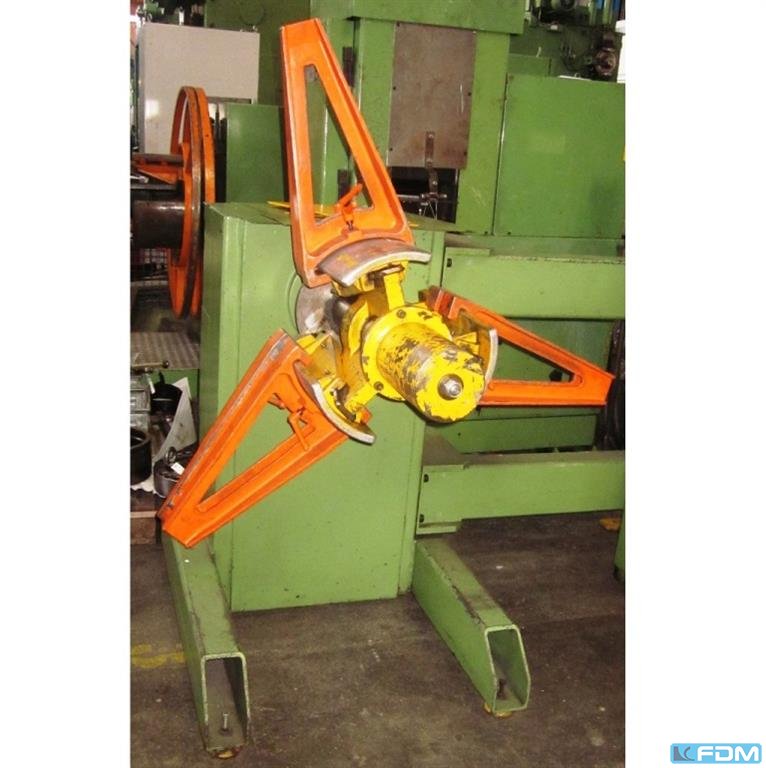

Double reel, reel, discharge reel, motor reel for sheet metal processing, punching machine, eccentric press, hydraulic press, automatic punching machine, motor reel, winding roll, decoiler, sheet metal unwinder -Manufacturer: Wanzke, reel height adjustable, with drive -Diameter/width: adjustable, see photos -Drive: 0.37 kW -Speed: 9 rpm -Dimensions: 1000/960/H1410 mm -Weight: 208 kg
used
Stroke: 15 mm pressure: 3 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
coil weight: 2 x 0,15 t clamping range: 265 - 485 mm band width: 200 mm Thickness of sanding paper: 0,1 - 4 mm total power requirement: 0,25 kW weight of the machine ca.: 180 kg dimensions of the machine ca.: 1,2 x 0,9 x 1,2 m - motorized double-turn coiler - newly painted The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
