LORENZ used machine for sale

Max. wheel diameter 420 mm gear width 120 mm Max. module 8 Min. module 0,5 control BWO CNC yes. of strokes 32-800 Hub/min total power requirement 50 kW weight of the machine ca. 9 t dimensions of the machine ca. 5.3 x 3.9 x 3.4 m

MAX DIAMETER 500 MAX STROCE 120 MAX MODUL 5

MAX DIAMETER 250 SINUMERIC 810 C YEAR 1996

Technical data Raddurchm. 900 mm Module 9 Capacity 21 KW Weight 11 to Max wheel diameter: 900 mm Wheel width 500 mm Module max 9 Milling cutter diameter 200 mm Tischaufspannï¬?ächen fit 720 mm Speed range 20-320 RPM. Feeds axial 0, 06...6, 0 mm/Rev. Proposed ' ube radial 0.02 bis2, 0 mm/Rev. Swivel spindle slide right/left: 45° space ca. 3000 x 1600 x 2.400 mm Weight ca. 11 to Power ca. 21 KW

LORENZ vertical impact machine SV00 - see pictures

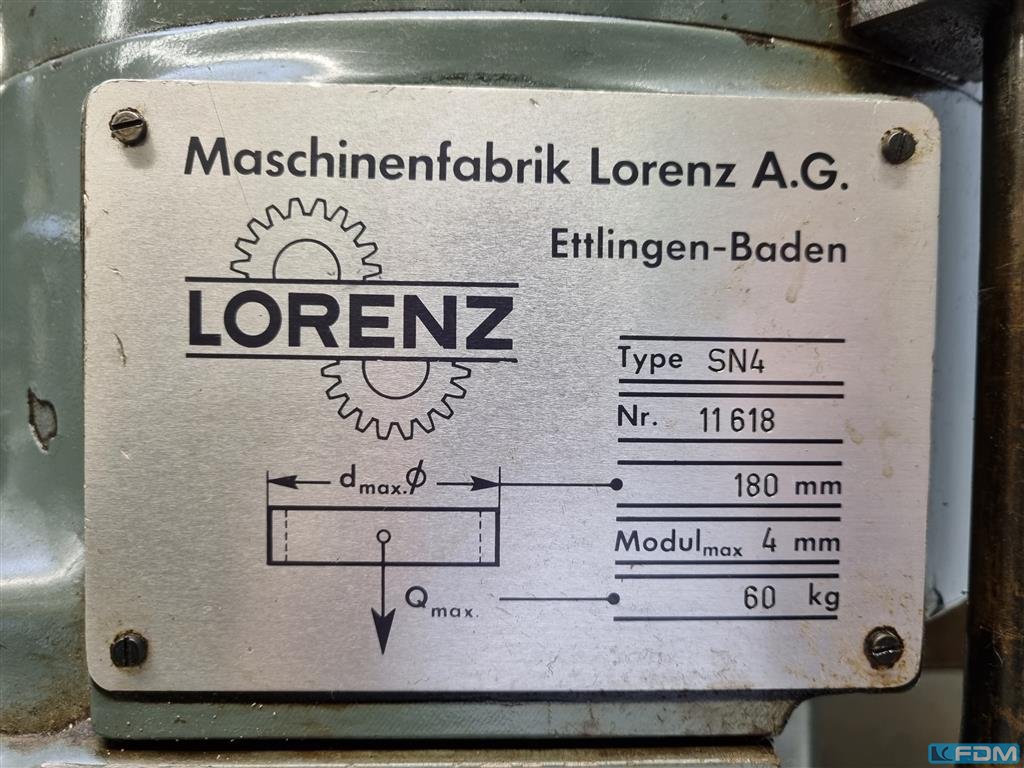

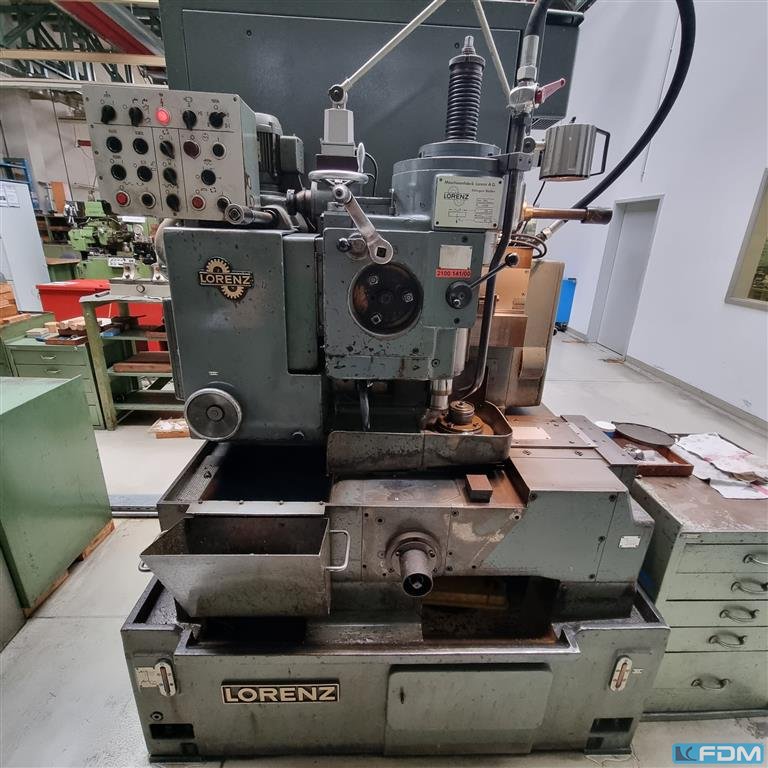

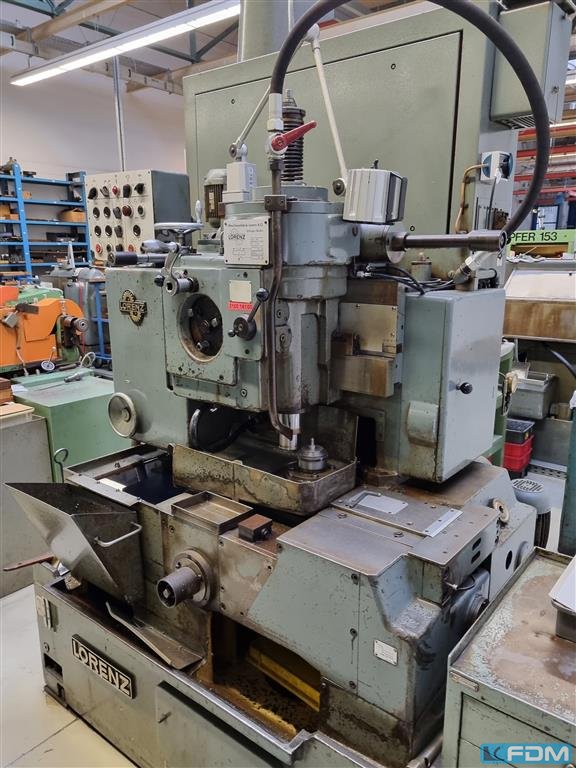

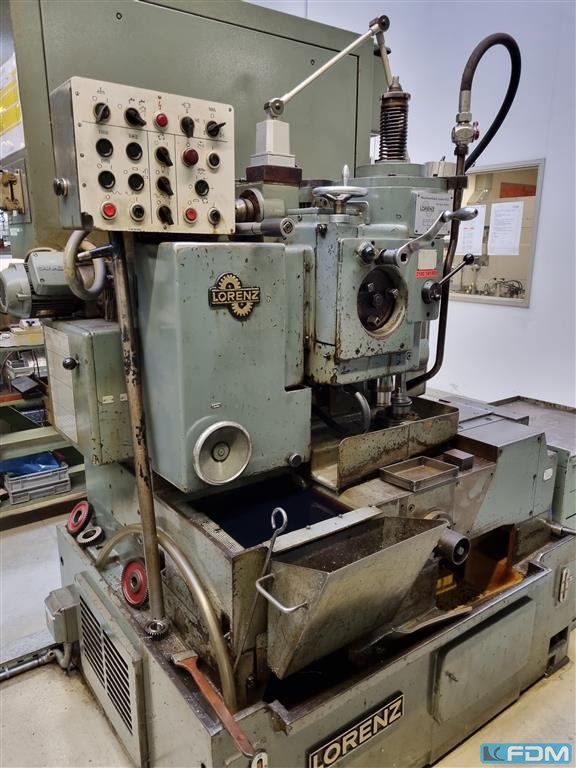

max. wheel diameter:180 mm

max. wheel diameter:180 mm

max. wheel diameter: 300/400 mm gear width: 70 mm max. module: 6 min. module: 0,5 total power requirement: 50 kVA weight of the machine ca.: 7,4 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 80 mm gear width: 44 mm max. module: 5 min. module: Control: SIEMENS 840 C adjustment axis angle shaping sp. - wp table: -0,5 - +0,5 ° stroke range: 250-1.500 DH/min centre distance table/shaping spindle: -15 bis +170 mm max. stroke length: 55 mm max. helix angle: 45 max. tool diameter: 180 mm feeds:: feed rotation axis of workpiece (100 mm wp diam.): mm/min feed rotation axis of work piece (100 mm wp. diam.: 10-15.700 mm/min feed center axis of machine column: 1 - 3.750 mm/min : 23 kw voltage: 400 V operating frequency: 50 Hz control voltage: 24 V DC total power requirement: kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: 4,2 x 2,6 x 2,6 m equipment · stroke positioning adjustment controlled by CNC · stroke length adjustment mechanical-manually · machine is fixed to the ground with specific damping shoes (part of the delivery scope) · oil m ...

max. wheel diameter: 180 mm gear width: 45 mm max. module: 4 min. module: 0,5 stroke length max.: 0 - 52 mm spindle taper: innen MK 4 table diameter: 160 mm table bore diameter: 75 mm no. of strokes: 355 - 630 Hub/min feed range: 0,008 - 0,4 mm/Hub dimensions of the machine ca.: 2,30 x 1,50 x 2,36 m power capacity: 6 kW weight of the machine ca.: 2.500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 420 mm gear width: 120 mm max. module: 8 min. module: 0,5 control: BWO CNC no. of strokes: 32-800 Hub/min total power requirement: 50 kW weight of the machine ca.: 9 t dimensions of the machine ca.: 5,3 x 3,9 x 3,4 m Machines increase 100 mm intermediate plate automatic Hublageverstellung automatic Hublängeverstellung 5 axis controlled machine BWO last type C, D, X, Z, L axes are CNC The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: --- mm gear width: --- mm max. module: --- min. module: --- total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. ram stroke: 230 mm throat: 230 mm table diameter: 0 mm are offered : 2 pieces of shaping spindle for Lorenz gear shaping machines type LS 630 to LS 1250 1x overhauled new 1x has to be overhauled. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 180 mm gear width: 45 mm max. module: 4 min. module: 0,5 stroke length max.: 0 - 52 mm spindle taper: innen MK 4 table diameter: 160 mm table bore diameter: 75 mm no. of strokes: 355 - 630 Hub/min feed range: 0,008 - 0,4 mm/Hub dimensions of the machine ca.: 2,30 x 1,50 x 2,36 m power capacity: 6 kW weight of the machine ca.: 2.500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Flow meter, vibration measurement, display device vibration measurement, monitor display -Manufacturer: Lorenz, measuring amplifier -Type: GM40 -Price: per piece -Number: 5 piece -Dimensions: 75/20/H110 mm -Weight: 0.1 kg/piece

Force measuring device, force measuring device, calibration, force measuring technology, load cell, tensile force measuring bearing, force sensor, tensile and compressive force sensor -Manufacturer: Lorenz, 4 pieces tensile and compressive force sensors with Durbal, joint head joint bearings -Sensor: Lorenz Type K-12 -Measuring range: - 100 kN -Sensitivity: 1,000 mV / V / 0.999 mV / V / 1.001 mV / V -Swing bearings: Durbal EF 35-20-501 -Dimensions toggle rod: 445 to 530 x 81 x 65 mm -Fork head: hole O 35 mm -Number: 4x boxes available, see photos for sensitivity -Price: per box -Dimension box: 590/390 / H200 mm -Weight: 30.2 kg / box.

faceplate diameter: 700 mm internal diameter: 105 mm weight: 450 kg height: 340 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

faceplate diameter: 1000 mm internal diameter: 400 / 90 mm weight: 285 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

amount: 1 Holzkiste Change Gears fpr Reishauer UL 1800 , in wooden case ! The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Straight guide, 3-jaw plate, change wheels / Straight guide, 3-jaw plate, gear change, High: 1100 mm, Long: 1800 mm, Width: 2300 mm, Module: 5, Weight: 5.000 Kg, Voltage: 220 / 380V, Ø table: 310 mm, Ø spindle: 78 mm, Total power: 3 Kw, Maxi. stroke: 75 mm, Ø max. gear: 500 mm, Cutting speed: 18, Ø hole table: 125 mm, Ø max. inside: 450 mm, Ø max. external carving: 500 mm, Number of strokes / min cutter: 45/424

Diameter: 0 mm CNC Brand: 0 CNC Model: 0 Control: SYNTEC 200TB (NEW 2019) Technical data Working range: Module from: 1 up to: 5 Max. wheel diameter: 250 mm Max. gear cutting width: 70 mm Table diameter: 320 mm Drill diameter of the table: 125 mm Max. ram stroke: 100 mm Distance ram to table: from: 190 mm up to: 290 mm Taper in ram: 40 ISO Ram stroke speeds: from: 100 s/min up to: 1200 s/min Voltage 50 Hz 3x: 380 Volt Drive: 36 kW Machine´s weight about: 10000 kg Overall dimensions machine: Length: 4500 mm Width: 3200 mm Height: 2900 mm Equipment: Retrofited control: 2019 Helical gearing Mise en conformité CE

Sheet thickness: 0 mm Roller width: 0 mm Number of rolls: 0   Roller diameter: 0 mm Technical data Decoiler: Inner coil diameter: 460 - 520 mm Outer coil diameter: 1900 mm Max. Coil weight: 7500 kg Band thickness max.: 620 mm Coil straightening machine: Number of rolls: 9 Roll diameter: 50 mm Max. bandwidth: 620 mm Sheet thickness: from: 0.6 mm up to: 6.5 mm

Length: 0 mm Module: 0 mm Width: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Working range: Module from: 0.5 up to: 6 Max. wheel diameter: 400 mm Max. gear cutting width: 70 mm Max. gear cutting diameter: 400 mm Min. ram stroke: 0 mm Max. ram stroke: 82 mm Adjustment of stroke position: 100 mm Distance ram to table: from: 265 mm up to: 365 mm Taper in ram: 5 MT Ram stroke speeds: from: 118 s/min up to: 1000 s/min Voltage 50 Hz 3x: 380 Volt Machine´s weight about: 6300 kg Overall dimensions machine: Length: 2570 mm Width: 1320 mm Height: 2200 mm

Length: 0 mm Module: 0 mm Width: 0 mm CNC Brand: 0 CNC Model: 0 Operating hours: 49903 Technical data Working range: Module from up to: 8 Toothed racks: Max. length to be shaped: 1850 mm Max. width to be shaped: 160 mm Table surface: Length: 2200 mm Width: 360 mm Max. ram stroke: 180 mm Distance ram to table: from: 55 mm up to: 280 mm Taper in ram: 50 ISO Ram stroke speeds: number (steps): 12 from: 26 s/min up to: 237 s/min Voltage 50 Hz 3x: 380 Volt Drive: 8.76 kW Machine´s weight about: 7100 kg Overall dimensions machine: Length: 5200 mm Width: 2300 mm Height: 2340 mm Description: gears are missing

x-travel: 0 mm y-travel: 0 mm table length: 600 mm table width: 400 mm total power requirement: 2 kW weight of the machine ca.: 1500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 150 mm gear width: 42 mm max. module: 3 min. module: 0,5 total power requirement: 10 kW weight of the machine ca.: 6 t External gears, max. Ø 150 mm (or more) Internal gears, max workpiece Ø, approx. 280 mm Gear width, max. 42 mm Module, max. 0.5 - 3 Length of stroke 0 - 50 mm Adjustment of stroke 0 - 70 mm Distance between shaper spindle and body of machine 250 mm Spindle internal table, approx. 45 mm Strokes, roughing / finishing 450 - 1,250 / 2,500 / min Table Ø 250 mm Table bore 100 mm Distance between table and shaper head, approx. 320 mm Axial travel of workpiece slide, approx. 285 mm Feed range, tooth depth 0.01 - 0.063 mm/stroke Rotary feed 0.125 - 3,150 mm/stroke Total electrical load, approx. 10 kW - 380 V - 50 Hz Weight 6,000 kg Accessories / Special Features Built-in hydrostatic straight guide. Built-in raiser plate for raising the shaper head 130 m ...

Shaper cutters from Module 1 to Module 14 available: - different no. of teeth, different pressure anles, different profiles, bores and sizes! shaft cutters Module 1-3 = 150 Euro, 4-5 = 250 Euro, >5 = 300 Euro disc cutters Module 1-3 = 150 Euro, 4-6 = 200 Euro, 7-10 = 250 Euro, 10-14 = 300 Euro. complete list on request! The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 400 mm gear width: 75 mm max. module: 0,5 min. module: 60 total power requirement: 25 kW weight of the machine ca.: 7 t dimensions of the machine ca.: m L O R E N Z (Germany) High Performance Automatic Gear Shaper Model LS 400 Year 1975 Serial No. 12 592 ______________________________________________________________________ ___________ External gear, max. Ø 400 mm (possibly larger) Internal gear dia. 350 mm Gear width, max. 75 mm Module range 0.5 - 6 Length of stroke 82 mm Adjustment of stroke position 0 - 100 mm Distance between shaper spindle and machine body 250 mm Spindle taper MK 5 No. of strokes, roughing/finishing process 118 - 1,000 per min Table size 400 mm Table bore 125 mm Mounting height between table and shaper head 190 / 290 mm Axial travel of tool slide, approx. 295 mm No. of teeth, approx. 12 ...

max. wheel diameter: 400 mm gear width: 280 mm max. module: 1 min. module: 4 total power requirement: 15 kW weight of the machine ca.: 6000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
