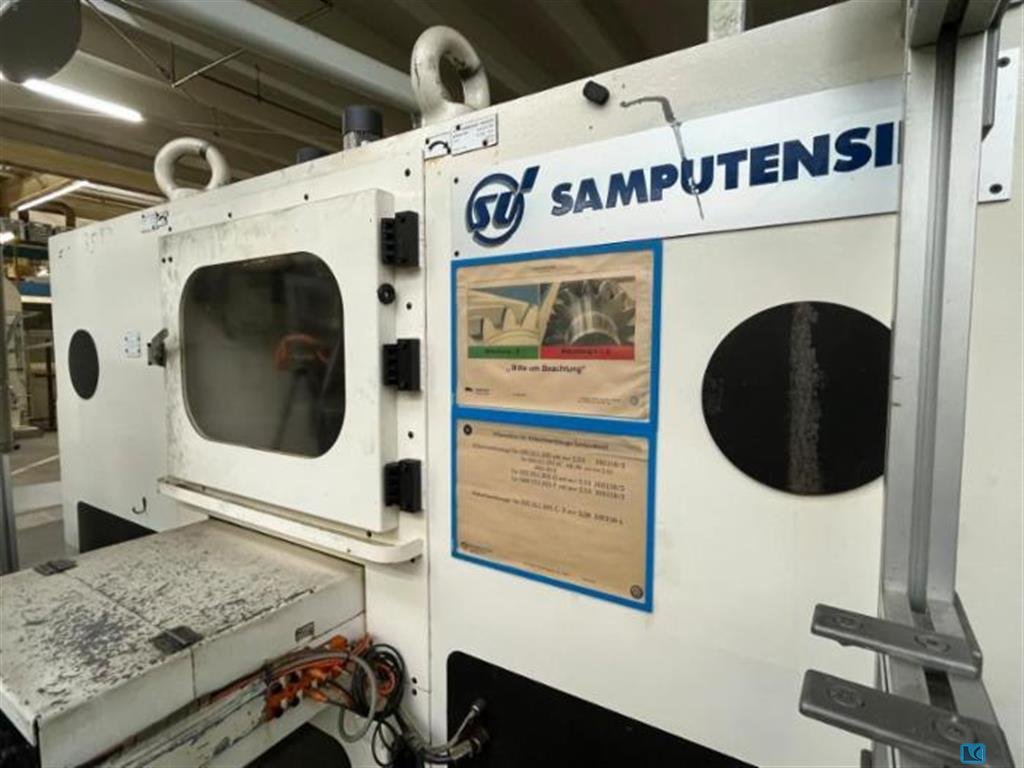

SAMPUTENSILI used machine for sale

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

grinding diameter:250 mm grinding length:2710 mm max. module: min. module: total power requirement:45 kW weight of the machine ca.:15 t space required L x W X H:7,1 x 4,7 x2,7 m max. wheel dia.:450 mm Spindle drives Arena Siemens For Worm grinding we have not module, but pitch. Patch is freely programmable from 0.001 to big value i.e. 500mm

Description: Technical data Dimensions workpiece Min. diameter 25 mm Max. diameter 350 mm Min. thickness paid section 4 mm Max. thickness of reminded section 105 mm Max. length of shafts with teeth at one end 500 mm Max. length of shafts with teeth in the middle 750 mm Supply voltage 400 V Frequency 50Hz Power consumption printing machine 12 kW Machine length 2570 mm Machine width 2150 mm Machine height 2300 mm Weight 1.5 tons Technical data subject to change Approx. Onsite Dimension. (l x w x h): 2,570 x 2,150 x 2,300 mm, weight approx.: 1,500 kg
