used Numerically Controlled Machining Centres for sale

Key data: 3200 , 1300 , 200

Processing field 1300 x 3200 mm Z axis 200 mm 2 Fields of work Automatic lubrication Rotary tool changer 8 slots removable with tool changer on the machine stand or change on 12 seat changers Net weight approx. 4 ton

Key data: 4500 , 1300 , 485

CNC machining center VEGA 5X 5 axis center

ALBERTI 5-axis machining center model POLAR EVOLUTION 3.5 CN: – maximum working range 3500 x 1637 mm – Z-axis stroke 600 mm, thickness machinable on suction cups 160 mm – 2 phenolic resin worktops of 1700 x 1632 mm: for alternating or synchronous machining "vacuum free" type, with holes connected to the vacuum system, NC-controlled zero points and retractable stops, with 12 blocks of suction cups with double vacuum chamber (without hose) Becker vacuum pump + pneumatic clamps for small parts – Automatic lubrication, optimised and centralised suction – electronic control with TPA and ALBATROS software, visualization program in Windows environment, EDI32-TPA EDITOR (CAD-CAM 3D) – machine in compliance with CE standards, with double front concealed barrier (for loading/unloading of the 2 worktops) and perimeter protections – machine di ...

x-travel: 2360 mmy-travel: 600 mmz-travel: 800 mmControl: Siemens 840 D total power requirement: 69 kVAweight of the machine ca.: 16,5 tdimensions of the machine ca.: mUniversal machining center for 5-axis simultaneous machining.Technical specifications:Traverse X/Y/Z 2360 x 600 x 800 mmPendulum stroke with vertical spindle left/right 1160/700 mmTable clamping area 2750 x 600 mm with 4 T-slotsTool holder SK 50Spindle speeds 30 - 4000 rpm.Equipment:CNC control Siemens 840 D with Shop Mill DIN ISOCNC rotary table type RTA 3-520CNC swivel milling head infinitely variable positioningTool changer with 26 tool placesChip conveyorCoolant system with high-pressure pump and belt filter systemCoolant through spindle 20 barElectric hand wheelSpace requirements:Machine length 5650 mm + 1800 mm with chip conveyorMachine width 3500 mm plus control panelMachine height 3200 mmMachine without clamping v ...

x-travel: 2940 mmy-travel: 700 mmz-travel: 850 mmControl: Siemens 840 D total power requirement: 75 kVAweight of the machine ca.: 16,5 tdimensions of the machine ca.: mTechnical specifications:Traverse X/Y/Z 2940 x 700 x 850 mmPendulum stroke with vertical spindle left/right 1170/1170 mmSpindle speeds 30 - 4000 rpm.AC hollow shaft motor, power 45 kW at 40% EDMax. torque 286 Nm at 40% EDTool holder SK 50Equipment:CNC control Siemens 840 DAutomatic CNC swivel head, B-axis under 2.5°directly programmable from X (-) 90° to X (+) 90°Locking via Hirth toothingTapping without compensating chuckCNC rotary tableMeasuring system Heidenhain, direct linearTool changer with 26 tool placesChip conveyorCoolant system with high-pressure pump and belt filter systemSpace requirements:Machine length 5800 mm + 1700 mm with chip conveyorMachine width 3300 mm plus control panelMachine height 3200 mmThe da ...

SECOND-HAND 5 AXIS CNC WORKING CENTER BACCI MOD. DOUBLE - X= 2400mm ; Y=650mm ; Z=1000 - N.2 heads type T2 - Spindle power 7.5Kw - rpm 0 - 18.000 - Max/min pieces length 150/2400mm - Loader type CSF2 - Year 2002 - s/n AB004 - Complete with manual and CE declaration

SECOND-HAND 5 AXIS CNC WORKING CENTER BACCI MOD. SMART – CE RULES - strokes: longitudinal axis x 1500mm transversal axis y 1800 mm vertical axis z 1000 mm. axis b unlimited axis c 400° - cn osai - type head 2+2 - rpm 0-24.000 - vacuum pump - cabin - volt. 380/50 - sn 120 - year 2001

SECOND HAND 5-AXIS CNC WORKING CENTER BACCI MOD. TWIN JET - strokes: X-axis 5400 mm Y-axis 1300 mm Z axis 650 mm A-axis 360° B-axis 260° - head type 2+2 (7.5 + 7.5 Kw) - chuck ER 32 - spindle speed 12000-24 rpm - n. 10 pneumatic clamps - n. 1 table Tgv - Cn Osai - yaskawa drivers - PITAGORA software - n. 1 Becker mod. PICCHIO 100 mc vacuum pump - Cabin (n.4 sides + roof) - volt. 380/50 - matr. 524 - CE Rules (Year 2008)

SECOND-HAND 5 AXIS BALESTRINI IDEA 2 – CE RULES - X axis 1800 mm - Y axis 1600 mm - Z axis 700 mm - 4 x 7.5 air cooled Colombo spindles - NUM control. - 2 Pumps 75 mc/h Rietschle - YEAR 2007 - complete with cabin

5 AXIS CNC WORKING CENTER BALESTRINI MOD. POWER 200 300 CE - USED - strokes: X-U 4000mm. Y 4000 mm. Z 700 mm. A 1000 ° C 400 ° (+/- 200 °) - n. 2 working tables 1400x3000 mm - n. 3+3 rails per each working table - n. 3+3 CSR supports per each table - head type CS 44 (n. 4 motors 7.5 kW each) - rpm 0/24000 g/min. with inverter - HSKC40/ER32 chuck - n. 2 inverters - wooden waste aspiration/cleaning device - Becker vacuum pump 100 mc - Electrical panel air conditioner - Num Axium control - T-CAS software - remote support - communication PC/CN TCP/IP - cabin + roof - CE rules - year 2010 - COMPLETELY RECONDITIONED

SECOND-HAND WORKING CENTER 4 AXIS BIESSE MOD. 37 XL - working dimension X 6000 - work dimension Y 1850 - work dimension Z 180 - 1 router - power router Kw 12 - C axis interpolating - tool clamping system HSK F63 - tool changing positions 21 - vertical drilling spindles 20 - horizontal drilling spindles X 6 - horizontal drilling spindles Y 2 - pod and rail table - n. 10 consoles - vacuump pump 250 m3/h - ATS - CE RULES (YEAR 2004)

Machine Size 2800 x 1940 x 2000mm Min. Size of machined panel 200 x 35 x 8mm Max. size of machined panel 3200 x 900 x 60mm

Biesse Italy, Rover 22 CNC Machining Center Built in 2001 SN 07498 Workspace 4 axes X-axis 3060 mm Y-axis 1080 mm Z-axis 155 mm 6 consoles with 18 vaccum suction holder 4 pneumatic bakelite rods for lifting the plate Vertical electric spindle 7.5 kW with automatic tool change, ISO 30 cone Automatic tool change 7 positions on the working head Drill head with 20 spindles arranged as follows: 7 vertical in X-axis 7 permeable to Y-axis 4 horizontal in X-axis 2 horizontal in Y-axis Groove saw 120mm Safety tread mats 110 m3 / h vacuum pump CE marked Weight 3500 Kg Technical information subject to reservation

Description: X: 4500mm Y: 1300mm Z: 180mm 4 Axes 250m3/h vacuum pump ATS work table with 4 suction trolleys Predisposition for ATS vices and clamps 16 suction cups Horizontal milling head 5 HP ROTARY tool magazine on 16position carriage Rapid ROTARY tool magazine 6 Positions Electrospindle 12 HP HSK63 F Vertical and horizontal drilling block 16 chucks Machine sold wthout tools or accessoriesApprox. Onsite Dimension. (l x w x h): 7,450 x 4,570 x 3,500 mm, weight approx.: 2,800 kg

SECOND-HAND CNC WORKING CENTER 4 AXIS BIESSE MOD. ROVER 24 S 6.5 - Working dimensions: X = 3000mm ; Y = 1350mm ; Z = 155mm - Tool changer 9 slots - ISO 30 - Drilling head 16 spindles - Saw blade group - Axe C - Vacuum pump Becker 100 mc/h - N. 6 working consoles - 7.5 bars - CE (year 2001)

Description: X stroke: 3390 mm Y stroke: 1850 mm Z stroke: 180 mm - HSK63 electro-spindle - 4 axes - 24-spindle vertical drilling unit - 6 horizontal milling unit - blade groove - 8-beam work surface - pivoting suction cups - work areas - clamps - BIESSE WORKS software and panel optimisation - 12-position tool magazine on Z carriage - Independent blade for grooving in the X axis - Front protection and safety system with belt - Perimeter protection grids - Automatic lubrication system - Air conditioning system for cooling and cleaning the machine control unit - Vacuum pump mc / h 250 - with electrical cabinet - Accessories (32 milling cutters, drills, etc.) Machine sold without tools or accessoriesApprox. Onsite Dimension. (l x w x h): 13,000 x 2,200 x 2,600 mm, weight approx.: 4,650 kg

5 axis CNC Wood Machining Center Table size 3280x1580 mm X,Y,Z axis speeds 80,60,20 mm/min Software Bsolid

SPECIFICATIONS: Machining center with grid table Working range X mm: 4300 Working range Y mm: 2200 Working range Z mm: 170 Milling unit - Electrospindle HSK F63, KW 13.2 Drill head type BH10 vertical/horizontal 2 vacuum pumps, each 250 m3 Automatic loading and unloading system Scissor lift Length unloading carpet mm: 4.940 Automatic unloading Automatic lubrication system Additional workstation for displaying and printing labels Revolver tool magazine with 16 positions

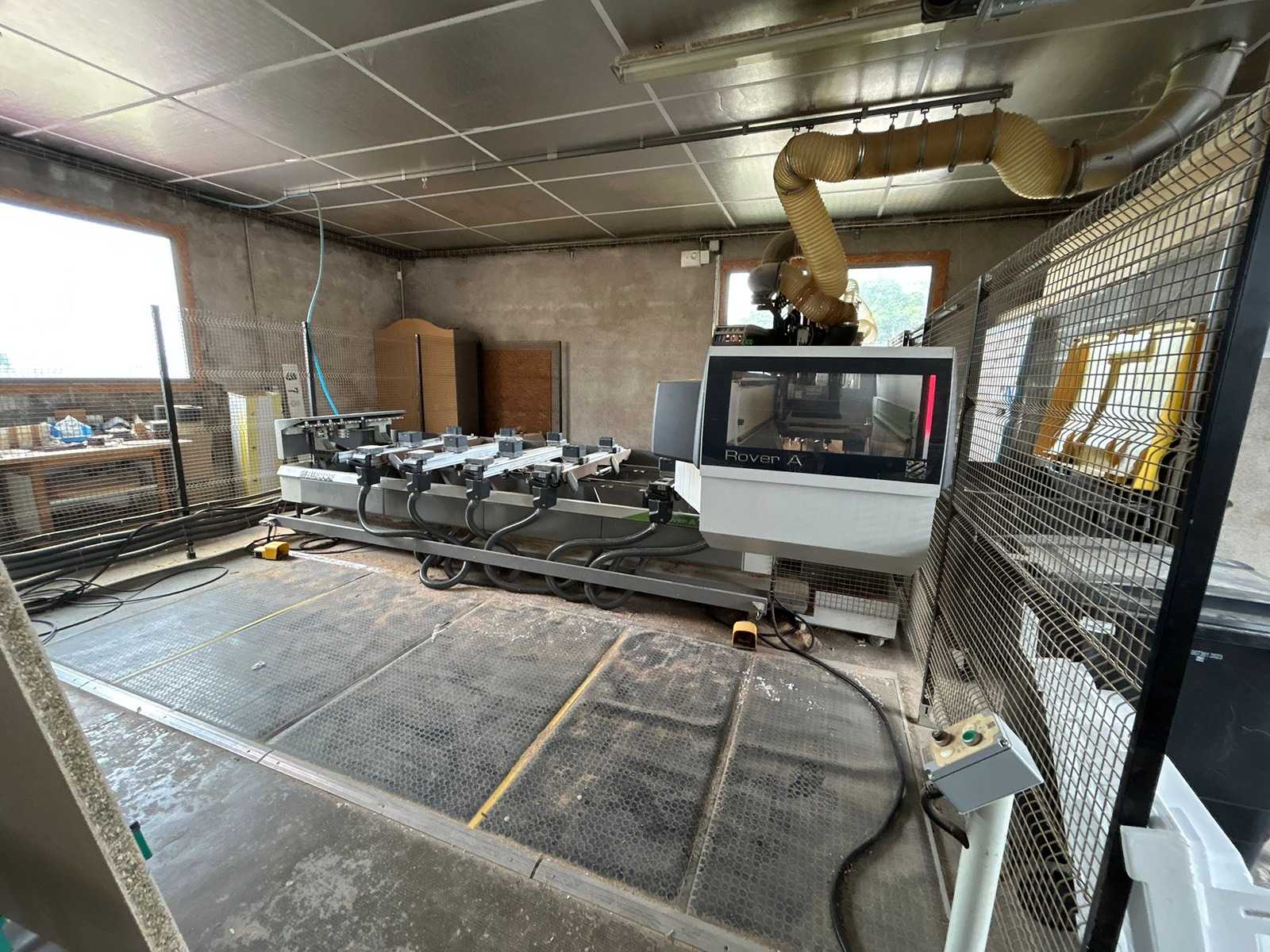

Description: Biesse Rover A4.55 - CNC Center , Model: Biesse Rover A4.55 Type: 4-axis CNC Center Year: 2010 Working Area: 5500mm x 1250mm Rails: 10 Tooling: Router, Drilling Unit, Horizontal Motor Axis: 4-axis (including C-axis) Tool Magazine: 20 positions (Without tools) Aggregates: Floating, 1-exit, 2-exits, Sawblade Tool Holder Type: ISO30 Features: Reference Stops, Detection Sensors, Thickness Measurement vacuum pump: 250 m³/h, 5-axis machining: No, x-motion: 5,680 mm, y-motion: 1,460 mm, z-motion: 200 mm, Approx. Onsite Dimension. (l x w x h): 7,900 x 4,500 x 1,980 mm, weight approx.: 3,900 kg

Description: Machine Specifications: Model: BIESSE ROVER B 4.50 Year of Manufacture: 2006 Operating System: BiesseWorks on Windows XP Number of Axes: 3 X-axis: 5220 mm Y-axis: 1750 mm Z-axis: 225 mm Spindles: 1 Main Motor Power: 12 kW Maximum RPM: 18000 Work Area: Effective Work Area: 6m x 1.3m Workpiece Depth: Adjustable (slightly larger than the nominal depth) Tooling: ISO30 Tool Holder Toolholder Included (Tools not included) Variety of toolholders, including saw aggregate for X, Y, or 45° cuts Tool Magazine: Capacity: 12 positions Table Configuration: 8 Tables 4 Vacuum Blocks per Table Additional Features: Serial Number: 71035 3-Axis Machining Year of Construction: 2006 Air Supply: 7 Bar Mass: 5700 kg Power Supply Voltage: 380 VAC Rated Current: 38 A Number of Power Supply Phases: 3 Power Consumption: 21.1 kW Frequency: 50 Hz BiesseWorks Software Operating Hours: 28 ...

Description: Machining center BIESSE ROVER C9.50 Serial number: 71421 Year : 2012 Availability : Weight with electrical cabinet: 6350 kgs Technical specifications : - Working range in X axis mm 4600 - Working range in Y axis mm 1935 - Working range in Z axis mm 275 - Numerical control with Biesse Bsolid software -No. 2 jobsite - Worktop bar - 8 bars electronically adjustable by C.N. for suction cup support - 6 pneumatic bakelite bars for panel lifting - 3 C.N. electronically adjustable suction cups for each bar with vacuum seal to secure panel during machining panel during machining - 1 vertical 5-axis interpolated electrospindle, with automatic tool changer, 18 kW motor, liquid-cooled, HSK 63 type cones - 1 vertical electrospindle with Vector C-axis, with automatic tool changer, liquid-cooled, cones type HSK 63 - 22-position automatic tool-changing system - positioned at the rear of the ...

I sell a double-sided CNC machining center Biesse Skipper 100 Year of construction 2006. Very productive and fast. Automatic entry table. Working length 90-3000mm Working width 70-1000mm Working height 8-60mm Configuration per page: Milling head 3.5 kW, 7000-18000 rpm 29+8+2 drill heads 1 groove saw D.150mm direction X Software BiesseWorks. CD included. Condition very good ! Fully functional. Automatic system of central lukrikazion and extraction hoods. Complete with safety barriers, transport elements and CE points. CE certificate and full documentation included Need for repair: 1 pcs. safety carpet

Working size X 3000 ,Y 1000 mm Thickness 60 mm Vertical Boring spindle 29 Horizontal boring spindles in X 8 Horizontal boring spindle in Y 2

Working area 2500x900x70 mm Software BIESSEWORKS Machine control PC control Rotation speed max rpm 18000 Number of Horizontal spindles 10 With Grooving spindle

Recording ISO 30 Connection BIESSE and possibly MASTERWOOD Ratio: approx. 1 : 0.7 Saw blade holder 35 mm, with side hole approx. 6 mm on pitch circle 50 mm Max. saw blade diameter approx. 165 mm BIESSE No: 9405A056

SPECIFICATIONS: Working table: 1000 x 1000 mm CNC control: Bosch CC 120 3-axis machining: X: 1050 mm Y: 920 mm Z: 110 mm 6-fold tool changer Spindle: ISO 25 Vacuum pump (VGS): 40 m³ air Total power: 12 KW Spindle motor power: 4 KW Speed: 18000 rpm EQUIPMENT: 4 spindles

Description: Machine number 40577/3.300, tool changer 46-fold, milling spindle 9.2 kW, X, Y, Z, C and A axes, machining table 2-fold rotating, worktop approx. 3500 x 1400 mmApprox. Onsite Dimension. (l x w x h): 1 x 1 x 1 mm, weight approx.: 1 kg

Description: Axis Configuration X-Axis: 3690 mm Y-Axis: 1730 mm Z-Axis: 300 mm Max Power Max Electro spindle power: 11/13 kW Max power installed: 20 kW Utilities Vacuum pump capacity: 90 m3/h Compressed air pressure: 0.6 kPa Compressed air consumption: 250 NI/1 Air connection coupling: Gas ½” Dust Extraction Dust extraction outlet: 200 Ø mm Extraction air consumption: 3200/3400 m3/h Extraction air speed: 28/30 m/s Control & Program Control: Genesis evolution runs on Windows system Machine Type 3-Axis CNC Machine Motor Type Horizontal Motor Processing Units Drilling Unit Groove Saw Tool Storage Tool Magazine Fixturing System Pods, Rails, and Clamps  ,vacuum pump: 90 m³/h, total electrical load: 20 kW, x-motion: 3,690 mm, y-motion: 1,730 mm, z-motion: 300 mm, Approx. Onsite Dimension. (l x w x h): 3,700 x 1,300 x 2,000 mm, weight approx.: 3,000 kg

C.M.S. CNC Turret Head Machining Center Model TRIAX R-65 Sn 285, 1986 IBH controller modus 1 (2) vacuum tables- each 48” deep x 60” long. (1) five station lathe section. Max. part 6.5” x 45” (2) vacuum pumps 5 hp. each. Total of (30) routers. (6) station turret with (5) routers per station. Consisting of; (2) stations of (5) routers each - 2 ½ hp. each. (4) stations of (5) routers each – 8 hp. each. Digitizing table for flat work or carving. Lathe section for spindle work (fluting, carving). Unit complete with extra parts and lots of tooling.

TECHNICAL DATA: Field X: 4320 Field Y: 1550 Workspace Z: 280 02 Main engines Kw: 8 x 2 Tool change positions: 8 x 2 Worktop: Console table Software: Fanuc 180 Number of milling spindles: 2 Max g/min rotation speed: 18000 Horizontal drill tips X: 8 Horizontal drilling tips Y: 18 Number of bars: 8 Vacuum pump: 2 Pump capacity for empty m3/h: 150 x 2 Chip conveyor belt

Description: Technical specifications: machining centre with fixed bridge and 2 moving plates dimensions for each working table: X = 2340 mm Y = 2520 mm working tables can be configured independent (pendular cycle) or single zone with coupled plates by CN the work surface of each of the working tables is constituted by a Lignostone vacuum table with a grid for the installation of the workpiece-holding joints numerical command: AB OSAI10/310 axis strokes: X = 4800 mm Y = 3200 mm Z = 250 mm 8 vertical milling motors 8kW, ETP axis, 18000 rpm (ref axe: TRIAX-004-365) 3 vacuum pumps Becker, 3x250 m³/h electrical panel with air conditioning, dimensions: 1400 x 800 x H 2.100 mm connection 400V, 50Hz, 100 KVA (150A) average working power = 35 kW CE mark vacuum pump: 250 m³/h, serial number: 1,785, total electrical load: 35 kW, 5-axis machining: No, Number of vacuum pumps: 3 pieces, x-mo ...

toolchanger positions: 6, total electrical load: 17 kW, x-motion: 1,300 mm, y-motion: 2,600 mm, z-motion: 500 mm, Approx. Onsite Dimension. (l x w x h): 3,500 x 2,300 x 2,450 mm, weight approx.: 2,000 kg

x-axis: 6450 mmy-axis: 400 mmz-axis: 380 mmworking lenght: 6500 mmNumber of tools: 8 St.tool taper: BT30 tool changing time: 1,2 secdiameter of tools max.: 80 mmturning speeds: 6000 U/minFeed speed: X = 34 m/min.Feed speed: Y+Z = 18 m/min.total power requirement: 8,5 kWdimensions: 9800 x 3000 x 2400/3300 mmweight: 5400 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Working range X mm: 7200 Working area Y mm: 2010 Working area Z mm: 300 No. 2 working areas mm: 2700 x 1500 Main motor kW: 11 Tool change stations 12 Machine table: console table Speed max rpm: 18000 Tool clamping system: HSK 63F Number of consoles 8 Vacuum pump: Yes Total connection kW: 78 Weight Kg: 12,300

Description: Motor power: 26.0 kw Year of construction: 2020 Motor voltage: 3x 400 v Motor frequency: 50 Hz Working range: X= 3090 mm, Y= 1530 mm, Z= 85 mm 3 different vacuum table zones DH16 drilling head 2 vacuum pumps with a total suction capacity of : 500 m³/h / 50Hz , Electrospindle 10 kw HSK F63 11-position linear magazine HSK 63F Machine sold without tools or accessoriesApprox. Onsite Dimension. (l x w x h): 10,000 x 2,400 x 2,100 mm, weight approx.: 3,000 kg

Description: WOOD ROUTER CNC SPEED 2010 Very few operating hours, neat and tidy condition of the machine. Space-saving Speed 2010 model for series production of various materials. Solid wood, chipboard, fiber, composite & abrasive materials Thermoplastics & thermosets , Elastomers Specially developed for nesting applications Including the following special equipment Vacuum table - new price: 7.420, - € net Reinforced calculator - new price: 625,- € net Technical specifications Rated voltage 400 V Repeat accuracy +/- 0.1 mm Backlash +/- 0.05 mm Working speed 50-5000 mm / min Tool length sensor HF spindle HSD 2.2 kW, air-cooled incl. holder and collet set ER25 PC, mouse, keyboard, monitor in the ergonomic computer desk on the machine CAD Rhino 7.0 software package, Beamicon2 control system, CAM Estlcam V11 Gear racks, planetary gears and profile guides on the X and Y axes Ba ...

Description: Four sided angle head unit from Grotefeld formerly IMA BIMA CNCApprox. Onsite Dimension. (l x w x h): 500 x 500 x 500 mm, weight approx.: 10 kg

Description: Sawing unit from Grotefeld formerly IMA BIMA CNCsaw unit: yes, Approx. Onsite Dimension. (l x w x h): 400 x 400 x 400 mm, weight approx.: 10 kg

Description: measuring range: X = 2,700 mm / Y = 1,250 mm / Z = 85 mm (other dimensions on request) resolution: 0.01 mm accuracy (tolerance): <, +/- 0.1 mm connected load: min. 2 sockets 230 Volt AC field of application incoming goods: quality inspection of delivered parts quality assurance: sample measurement directly on the production line production: for regular checking of machine settings before the start of production of a series process control (safety in production) reduction in set-up time through automatic feedback to the operator of the drilling spindles to be adjusted in the X, Y and Z directions. quality check before delivery - assembly & training by HECHT AG, possible by exclusive arrangement. - factory overhaul 2023 - 12 months warranty with max. 2-shift operation (not valid for spare and wear parts)Approx. Onsite Dimension. (l x w x h): 3,364 x 2,600 x 1,300 mm ...

x-travel: 2100 mmy-travel: 720 mmz-travel: 600 mmspindle taper: SK 40 turning speeds: 30 - 8000 U/minno. of workpieces in the magazine: 30 Stücktable surface area: 2800 x 650 mmtable load: 2500 kgtable height over floor: 900 mmrapid travel x/y/z: 30 m/minfeed speeds: X/Y/Z 0 / 30000 mm/mintotal power requirement: 25 kWweight of the machine ca.: 12000 kgdimensions of the machine ca.: 5500 x 3400 x 3100 mmCNC traveling column machining center HedeliusFurnishing:- HEIDENHAIN control TNC426- chip conveyor- Coolant system 350 / 2.5 bar- Working area hoodMachining values:- max. milling capacity: 600cm³/min- max. drilling Ø: 44 mm- max. thread Ø: M30operating hours:- control on = 68283 hours- machine on = 67782 hours- program run = 20891 hoursThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Facilities: -Console machine with cantilever -Pneum.. Workpiece stops with double-acting cylinders -Pneum.. Assembly AIDS -additional editing fields front (4-field machining) -Handheld -C axis -Swivel sawing unit to the grooves in the X - and Y-direction -Horizontal milling unit for lock box -Plate tool changer driving with - laser positioning aid for the cleaner -autom. Central lubrication system Technical data: -Traverse path Max X: 3.259 mm -Traverse path Max Y: 1,483 mm -Maximum Z: travel 325 mm -Speed Max x: 75 m / min -Speed Max Y: 75 m / min -Maximum Z: speed 30 m / min -Workpiece thickness max: 100 mm -Spindle motor power: 7,5 kW -Main spindle speed: 1000-18000 RPM -Recording of main spindle: HSK 63F -Recording spindles: M10 with 11 mm fit -Number of vertical spindles: 14 pieces -Number of horizontal twin spindles in the X direction: 1 piece in the Y-d ...

axis stroke (X,Y,Z): 2500x1300x160 mmNumber of spindle head vertical: 1 St.Number of spindles head horizontal: 0 St.Number of tools: 16 St.Year: 2023 Weight: 1500 kgDimensions (L/W/H): 3400x2250x1900 mmMotor output: 2,2 kWControl: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Max Machining Dimentions : 3200x1190x70 mm Min Machining Dimentions : 200x70x8 mm Drilling head 15 spindles include sawing unit in X direction Linear tool changers 6

Description: X-axis working surface: 4400 mm Y-axis working surface: 2100 mm vacuum pump automatic tool change motor power: 12 kW , control system: POWER PC CONTROL PC 85 x-motion: 4,400 mm, y-motion: 2,100 mm, control: POWER PC CONTROL PC 85, Approx. Onsite Dimension. (l x w x h): 6,200 x 2,400 x 1,000 mm, weight approx.: 4,300 kg

Description: HOMAG PROFI BOF311/60/F/KC ,5 axis processing centre • Fully automatic CONSOLES - CLAMPING TABLE KC  ,  ,- 10 clamping consoles with automatic positioning unit  ,  ,- 30 automatically positionable platforms for holding the vacuum clamps  ,  ,- 4 lifting rails attached to the side of the consoles • , ,5 axis main spindle 15 kW liquid cooled.  ,  , - Speed range continuously programmable from 1000 - 24000 rpm. • Drive 5+ unit interface for the use of machining units. , • Drilling head 17 spindles vertical  ,- 1 motor 2,7 kW, frequency controlled Speed max. 7500 1/min  ,- 7 spindles vertical in X-direction  ,- 11 spindles vertical in Y-direction - 4 spindles horizontal drilling and sawing unit • , ,Chain changer for 30 tool / unit positions with upstream double gripper for  ,  , , &nb ...

CNC vertical machining center DRILLTEC Type: V-200 Optimat BHX055 Year of construction: 2021 only 564 operating hours Workpiece length 200 - 3050 mm incl. roller conveyor Workpiece width 70 – 850 mm Workpiece thickness 12 – 60 mm Workpiece weight max. 35 kg Speed of axes X/Y 50 m/min., Z 15 m/min. Vertical Drill Gear V13/32 mm High Speed 2 rows of drill bits, each with 5 drill bits in parallel in X-direction 1 row of drill bits with 5 drill bits in Y-direction Total drill length 70 mm Drill diameter max. 35 mm Spindle spacing 32 mm Horizontal drill gear with 4 spindles (2 right, 2 left) in X-direction, can be called up individually, drill spacing 32 mm Horizontal drill gear with 2 spindle (1 right, 1 left) in Y-direction, can be called up individually Groove saw in X-direction, diameter 100 mm Tool change spindle HSK 63 and converter 10 kW Tool diamet ...

CNC machining center Homag type DRILLTEQ V500 Specifications: • For machining: workpieces made of wood or wood-like materials • Peak Usage Time (Hours): 3430 • Speed of axes - vector speed (m/min.): X/Y = 50 • Speed of axes - vector speed (m/min.): Z = 15 • Package configuration equipment: 2V10/32MM, 2H6X/2Y, N1X-Y90, F1-HSK10KW, W4 • 2 independent (SPLIT HEAD) CNC-controlled supports: suitable for accommodating machining units, can be moved automatically in the Y and Z directions via ball screw • Drill gear: V10/32MM HIGH SPEED including quick-change system and spindle clamping • Spindle spacing (mm): 32 • Spindle type: individually controllable • Horizontal drill gear: with 6 spindles X-direction • Horizontal drilling unit: with 6 drilling spindles that can be called up individually via program • 6 drilling spindles: pitch 32 mm • Spindle typ ...

Key data: 4200 mm, 1500 mm

Power Control PC85, Woodwop, ATC 12-speed, A lot of accessories, Gluing unit, ... 2 retractable and extendable changing tables, two-part clamping table with 2 processing stations for pendulum occupancy, edge height max. 65 mm, chip and remnant disposal, drill head 17 spindles, main spindle 14.5 KW, speed 24000 1/min Incl. many accessories Condition: dismantled

Description: ATTENTION: Location 35614 Aßlar, Germany Well-maintained HOMAG Optimat BAZ 311/52/K CNC machining center with HOMAG Optimat TBA 330/20/16 vacuum feeder, main spindle with Flex5 interface and web edge press unit. ,The main spindle was replaced at the beginning of March 2024 and the costs were EUR 19,000! HOMAG Optimat BAZ 311/52/K, machine no. 0-201-21-4391 HOMAG Optimat TBA 330/20/16, machine no. 0-205-21-4383 Workpiece length: - Single occupancy with tool diameter. 25mm max. 5200mm - Pendulum assignment with tool diameter. 25 mm max. 2150 mm with pendulum occupancy Workpiece width front stop: - max. 1525 mm with tool diameter 25mm - max. 1525 mm with web edge pressing unit - max. 1450 mm for all units Workpiece width stop at the back: - max. 1730 mm with tool diameter 25mm - max. 1650 mm with web edge press unit - max. 1600 mm for all units Main spindle: - Motor  ...

Description: Control voltage on: 35'849 h Main spindle BE1: 23749 h Boring head BE1: 3709 h Drill head: 17 spindles Main spindle: 18.5 kW controlled Chain changer 30-fold HSK F63 Speed range 0-18'000 rpm Drilling head 35 spindles vertical, for automatic changing into the main spindle Control system was converted in 2014: RECHNER IPC 5.11.0.0 WITH DVD, Industrial PC IPC 5.11 from Eltec with Windows XP operating system, hardware: Industrial PC Intel Core 2 Duo E8400 3.0 GHZ, working memory 4 GB RAM, 2 COM interfaces RS232, internal DVD-ROM drive, 1 fixed hard disk with 250 GB, 1 USB hard disk for data backup, 4 USB ports, Ethernet network connection with EC Declaration of Conformity Series no. 0-201-19-1527 without tools or units and without vacuum pump ( central vacuum system ) Translated with DeepL.com (free version)working width y-axis: 1,600 mm, working height z-axis: 950 mm, worki ...
