used MAKINO mag

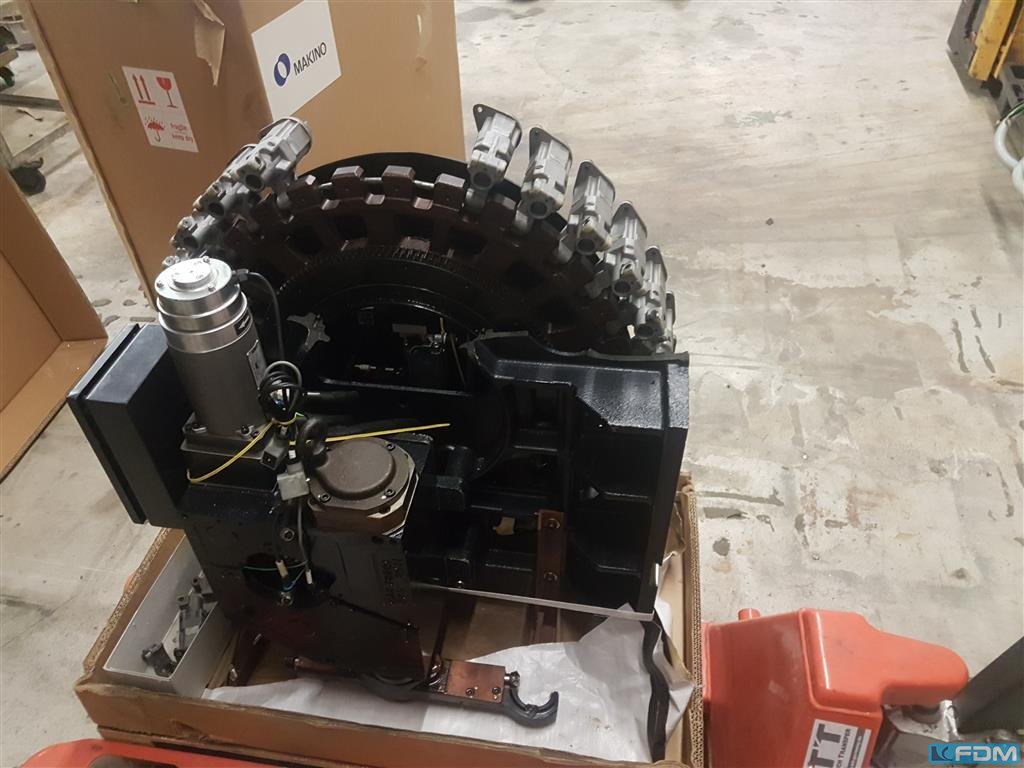

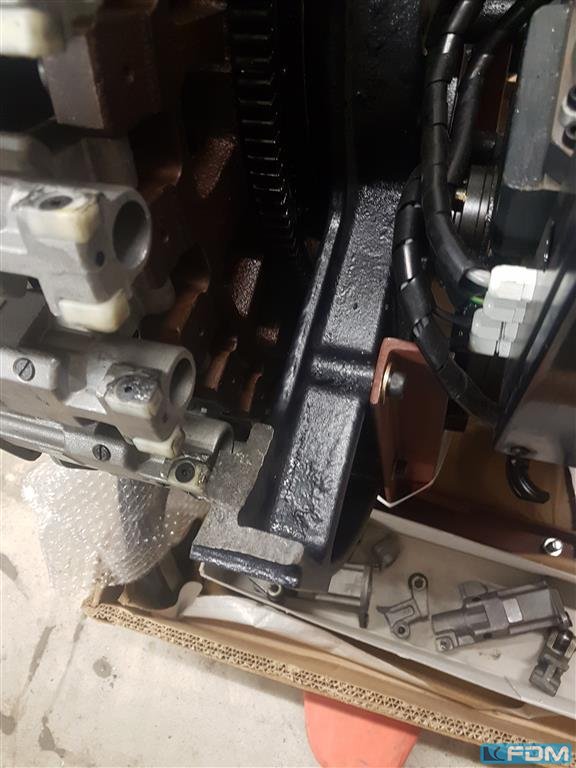

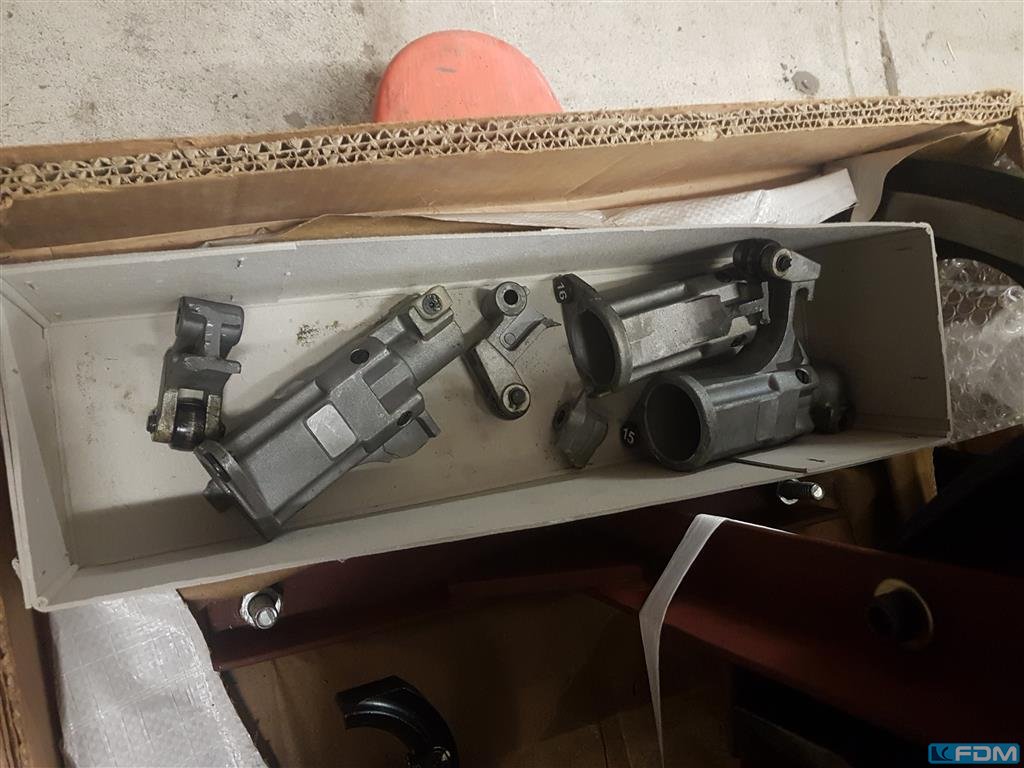

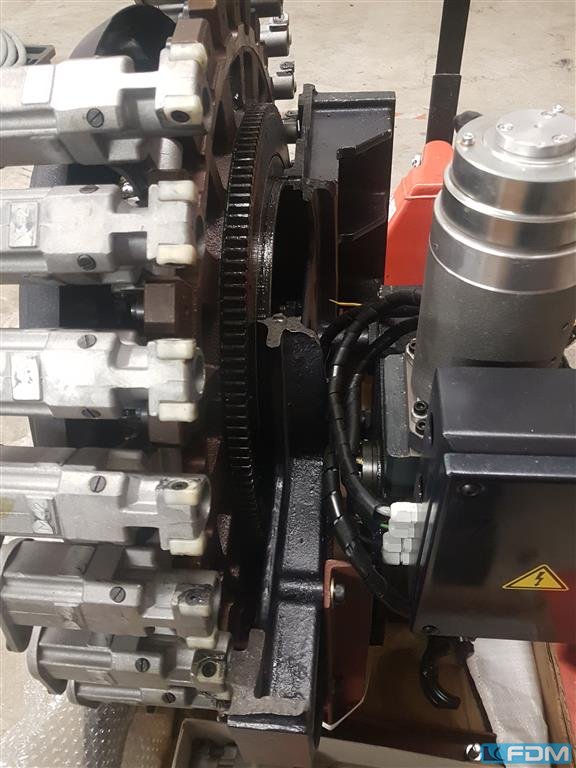

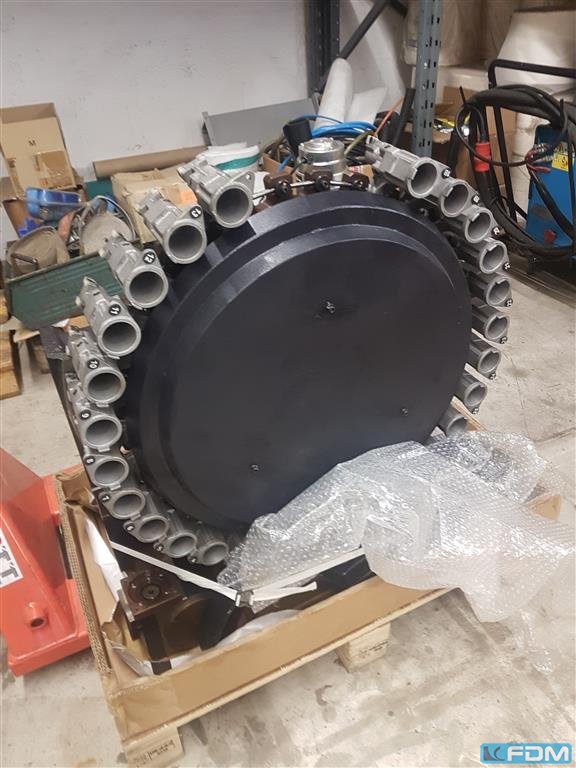

We are selling a new unused but defective tool magazine with tool changer for a Makino PS 95. The magazine body was broken in two parts with a crane hook during unloading of the machine from its transport box. Also some tool pots are damaged. Can be repaired or used as spare parts

Makino U 86 Wire ereroding machine, Built in 2001, Multipulse control, Travel X/Y/Z 800/600/500 mm, max table load 3,000 kg, Bath size X/Y/Z 1220/910/500 mm, Clamping surface table 1220 x 910mm,

Makino V55 Vertical Machining Center Double table X : 900 mm Y : 600 mm Z : 600 mm 22 000 rpm Machine can be seen in working condition

x-travel: 900 mm y-travel: 800 mm z-travel: 970 mm Control: Fanuc type: PRO-3 tool taper: HSK 100 power capacity: 30 kW turning speeds: 12000 U/min rapid traverse: 50 m/min Tool changer: 90 Pos. Cooling through the spindle: 70 bar size of pallet: 630x630 mm Table load: 1200 kg rotary table tiltable: 1 Grad type of pallet-changer: 2 total power requirement: kW weight of the machine ca.: 20 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mm y-travel: 750 mm z-travel: 770 mm Control: Fanuc type: PRO-3 tool taper: HSK 100 power capacity: 30 kW turning speeds: 10000 U/min rapid traverse: 35 m/min Tool changer: 90 Pos. Cooling through the spindle: 70 bar size of pallet: 630x630 mm Table load: 1200 kg rotary table tiltable: 1 Grad type of pallet-changer: 2 total power requirement: kW weight of the machine ca.: 15 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mm y-travel: 750 mm z-travel: 770 mm Control: Fanuc type: PRO-3 tool taper: HSK 100 power capacity: 30 kW turning speeds: 10000 U/min rapid traverse: 35 m/min Tool changer: 90 Pos. Cooling through the spindle: 70 bar size of pallet: 630x630 mm Table load: 1200 kg rotary table tiltable: 1 Grad type of pallet-changer: 2 total power requirement: kW weight of the machine ca.: 15 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Travels: 1200mm/700mm/650mm, table dimensions X/Y: 1550mm/650mm, torque: 410Nm, control: Heidenhain 426. On-site inspection is possible.

CNC - Control Makino Travel x/y/z 370 mm / 270 mm / 220 mm workpiece dimensions L/W/H 790 mm / 670 mm / 220 mm Wire diameter range 0.1 mm – 0.25 mm workpiece weight 600 kg cone at 100 mm height +/- 15° Mitsubishi - Axle Drives

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Positions APC: 0   CNC Brand: 0 CNC Model: 0 Control: FANUC Series 31i Technical data Table length: 750 mm Table width: 450 mm Table load max.: 300 kg Longitudinal travel (X-axis): 650 mm Transversal travel (y-axis): 450 mm Vertical travel (z axis): 350 mm Dimension of the workpice: Length: 750 mm Width: 635 mm Height: 250 mm Tool magazine number of tools: 60 Tool diameter max.: 80 mm Tool lenght: 250 mm Max. tool-weight: 7 kg Time of tool changing: 4.8 sec Spindle nose: HSK: E50 Distance spindle nose to table: 150 - 500 mm Spindle speeds: stepless from: 300 rpm up to: 30000 rpm Feed range: 1 - 20000 mm/min Rapid traverse:: 20 m/min Air connect: 4 - 8 bar Voltage 50 Hz 3x: 400 Volt Spindle power: 17/13 kW Total power required: 50 kVA Machine´s weight about: 7700 kg Overall ...

5-axis horizontal machining center Makino MCD 2016 Year of construction 2005 Fanuc 16MC + Pro 3 Controller 2-fold pallets 1,300 x 1,300 mm Pallet load per pallet max. 12,000 kg ! 4e axis B-axis 360° / 0.001° 5e axis 25° spindle holder, C-axis + /- 185° X 2,000 mm Y 1,600 mm Z 1,500 mm Spindle drive power 50 kW Spindle speeds up to 15,000 rpm. Tool holder BT50 Big Plus 99-fold automatic tool changer ATC Renishaw Touch Probe Scales on X, Y, Z, B axes Conveyor IKZ 28 bar Great condition To be visited under power Offer number MH-6265

Makino A55e Horizontal Machining Center ::SPECIFICATIONS::: CNC Model: Makino CNC version: Professional 3 (Fanuc 16iM) Tool connection: HSK 63 Spindle power: 20Kw Number of spindle revolutions: 14000 Number of tools: 133 X Axis Stroke: 560mm Y-axis stroke: 560mm Z Axis Stroke: 600mm Rapid feeds linear axes X Y Z: 90m/min Guides: roller Pallet size: 400x400mm Pallet type: indexed Maximum load allowed: 500Kg High cooling pressure: yes Pressure value: 70bar System with external tank with filter: yes Chip evacuator: carpet Machine equipment: Marposs probe :::D IMENSIONS AND WEIGHT::: Length: 4800mm Width: 2200mm Height: 3000mm Weight: 9000Kg

BRAND: MAKINO YEAR: 2013 MODEL: F5 APPLICATION TYPE: MILLING LOCATION: SLOVENIA MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 3065 MM MEASUREMENTS DEPTH: 2565 MM MEASUREMENTS HEIGHT: 2625 MM MACHINE WEIGHT: 7500 KG CONTROL UNIT BRAND: FANUC MODEL: SERIES FS31I MAIN DRIVE SPINDLE SPEED RANGE: 200-20000 1/MIN MOVEMENT X-AXIS MOVEMENT: 900 MM Y-AXIS MOVEMENT: 500 MM Z-AXIS MOVEMENT: 450 MM WORKPIECE WORKPIECE WEIGHT: 8 KG TABLE OUTER LENGTH: 1000 MM OUTER WIDTH: 500 MMTABLE LOAD: 1000 KG

BRAND: MAKINO YEAR: 2004 MODEL: EU 64 APPLICATION TYPE: EDM LOCATION: PORTUGAL MACHINE TYPE: EROSION MACHINE AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 2500 MM MEASUREMENTS DEPTH: 2500 MM MEASUREMENTS HEIGHT: 2200 MM MACHINE WEIGHT: 5000 KG CONTROL UNIT BRAND: MAKINO MODEL: MGW-R MAIN DRIVE NUMBER OF AXIS: 5 MOVEMENT X-AXIS MOVEMENT: 600 MM Y-AXIS MOVEMENT: 400 MM Z-AXIS MOVEMENT: 260MM V-AXIS MOVEMENT: (+-) 75 MM U-AXIS MOVEMENT: (+-) 75 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MAX. PART DIMENSION: 940 XZ 650 X 260 MM - MAX. WEIGHT PART: 1500 KG - STANDARD SPOOL SIZE: 25 KG - AWT (AUTOMATIC WIRE THREADING): YES - STANDARD WIRE GUIDES: 0,25 MM - OPTIONS: CHILLER INCLUDED

BRAND: MAKINO YEAR: 2016 MODEL: D500 PRODUCTION HOURS: 20000 APPLICATION TYPE: MILLING LOCATION: SPAIN MACHINE TYPE: MACHINING CENTERS (HORIZONTAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: MAKINO GINDUMAC ID: ES-MIL-MAK-2016-00001 Technical Information CONTROL UNIT BRAND: MAKINO MODEL: PROFESSIONAL 5 MAIN DRIVE SPINDLE SPEED RANGE: 14000 1/MIN NUMBER OF AXIS: 5 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - 320 TOOLS - STROKES 550 X 1000 X 500 MM

Type: Die-sinking EDM machine Number: 21958 Category: Die-sinking EDM machines / EDM Manafacture: Makino Model: EDAF 3 Year of construction: 2016 Travel: 450 x 350 x 350 mm [ X x Y x Z ] Table size X: 700 mm Table size Y: 500 mm max. workpiece size X: 850 mm max. workpiece size Y: 650 mm max. workpiece size Z: 400 mm max. workpiece weight: 800 kg C-axis Linear scales (X,Y,Z) Control Hyper i Super Spark iV Super Surface Super Edge (incl. MF 4) Super Surface Graphite EROWA Robot Interface (A-Type)

BRAND: MAKINO YEAR: 2014 MODEL: V33I GRAPHITE APPLICATION TYPE: MILLING LOCATION: NETHERLANDS MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: 01 02 2024 CONTROL UNIT BRAND: MAKINO GINDUMAC ID: NL-MIL-MAK-2014-00001 Technical Information CONTROL UNIT BRAND: MAKINO MODEL: PROFESSIONAL 6 MAIN DRIVE SPINDLE SPEED RANGE: 20000 1/MIN TOOL TAPER: CAT40 (HSK-A63, HSK-F63 & HSK-E32) NUMBER OF AXIS: 3 MOVEMENT X-AXIS MOVEMENT: 650 MM Y-AXIS MOVEMENT: 450 MM Z-AXIS MOVEMENT: 350 MM TABLE OUTER LENGTH: 750 MM OUTER WIDTH: 450 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - RAPID TRAVERSE 20,000 MM/MIN - CUTTING FEEDRATE 10,000 MM/MIN - MAXIMUM WORKPIECE 750 X 635 X 250 MM - MAXIMUM PAYLOAD 300 KG - ATC CAPACITY 25 (40, 60) - TOOL TO TOOL 4. 8 SECS - MAXIMUM TOOL DIAMETER 80 MM - MAXIMUM TOOL WEIGHT 7 KG - OPTIONAL A ...

Key data: 550 , 1000 , 500

For sale Makino 5-axis SImultan machining center type D500, equipped with a Fanuc 310iS (Profesional 5) controller including Makino robot system. Very nice 5-axis simultaneous machining center type D500. X-axis movement: 550 mm Y-axis movement: 1000 mm Z-axis movement 500 mm A-axis: 150 degrees (+30 degrees to -120 degrees) C-axis: 360 degrees continuous Complete with Makino robot system. It is a Fanuc 6-axis robot type R2000iB/165F including rack magazine Makino VIP with 45 positions

BRAND: MAKINO YEAR: 2001 MODEL: V55 APPLICATION TYPE: MILLING LOCATION: ITALY MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY Technical Information CONTROL UNIT BRAND: FANUC MODEL: PROFESSIONAL 3 MAIN DRIVE SPINDLE SPEED RANGE: 20000 1/MIN MOVEMENT X-AXIS MOVEMENT: 900 MM Y-AXIS MOVEMENT: 500 MM Z-AXIS MOVEMENT: 450 MM TOOLS SLOTS IN STORAGE: 40 TYPE OF TOOL HOLDER: HSK-A 63

X : 650 mm Y : 550 mm Z : 450 mm 20.000 rpm 1500 liters double head compressor Tool cabinet and hool holders come with machine

Makino S33 High Speed Machining Center Control Unit : Fanuc PRO 5 X: 650 mm Y:500 mm Z: 400 mm Spindle speed : 20.000 rpm Rapid: 40.000mm/min Cutting: 40.000mm/min Prob Tool holders are included Machine is in good condition

Makino SP43 EDM Wire Cutting Machine Machine is in very good condition Double generator X : 450 mm Y : 300 mm Z : 320 mm

x-travel: 730 mm y-travel: 730 mm z-travel: 800 mm Control: Professional 6 : 60 St. total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control: Fanuc Profesional 5 Max.travel range: X 450 mm Y 650 mm Z 460 mm Spindle speed ? 18000 rpm Taper ? HSK 63 Tool changer ? 25 positon machine has spindle cooling, Erowa clamping system is available, measuring probe for parts set up, lase

Control: Fanuc Profesional 3 Max.travel range: X 450 mm Y 650 mm Z 460 mm Spindle speed ? 18000 rpm Taper ? HSK 63 Tool changer ? 25 positon machine has spindle cooling, Erowa clamping system is available, measuring probe for parts set up, lase

Control: Makino Generator: MGW-R Max.travel range: X 600 mm Y 400 mm Z 250 mm U x V axis travel +/- 75 mm Work tank dimensions: 920 x 600 mm Dialectric tank capacity: 900l Made in Japan
