used ADIGE lt

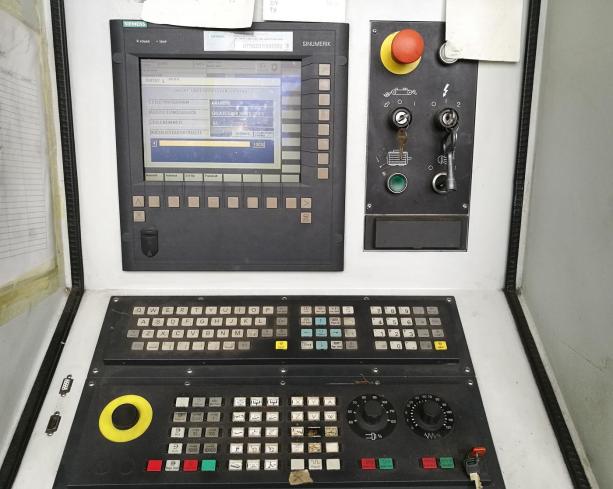

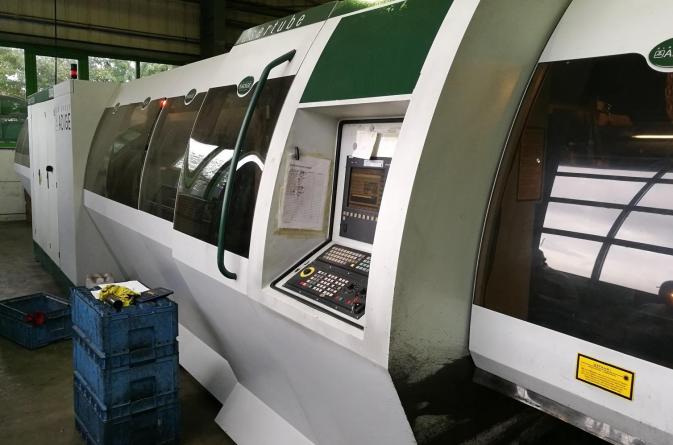

BLM ADIGE LASERTUBE LT722D laser tube cutting machine manufactured in 2013, is designed for cutting tubes made of ordinary steel, stainless steel and aluminium. The machine processes metal workpieces with a maximum diameter of 152 mm, 100 kg weight and 6.5 m length. The process is carried out with a high-performance 2500 W CO2 laser, guaranteeing high quality, precision and speed of cutting. A SIEMENS CNC controller installed on the machine body is used to fully control the entire machining process, and Artube CAD/CAM software also allows the integration of the design phase with the production phase. The total weight of the laser is 9000 kg. Technical specifications of the BLM ADIGE LASERTUBE LT722D tube laser - CO2 laser power: 2.5 kW - source type: Rofin DC 025 COMPACT - CNC control: SIEMENS - CAD/CAM software: Artube - cutting head: 2D Tube Cutter BLM GROUP - processed mat ...

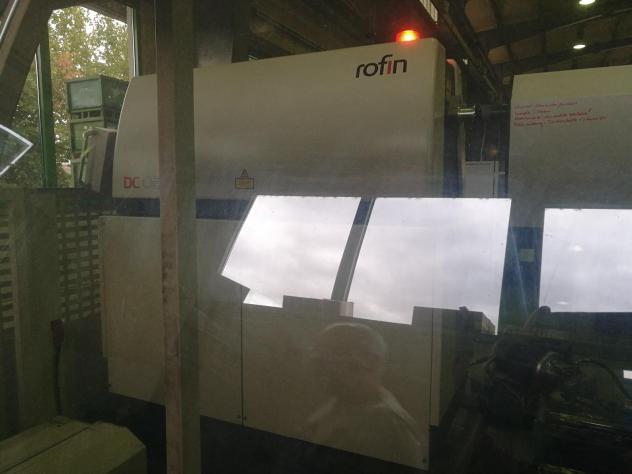

Inv. Num. : 4861 Type: LT8 Producer: ADIGE Created: 2011 Parameters: Control system: Siemens ADIGE Switch-on hours: 51218 h Operating hours: 34560 h Laser power: 3 kW Working table length: 200 mm Working table width: 200 mm Feed length X-axis: 7750 mm Input length: 6000 mm Output length: 5500 mm Tube diameter: 220 mm Equipment: 3D head Resonator Rofin Sinar DC 030 Loader Discharger

This ADIGE LT8 was manufactured in 2014. A laser cutting machine equipped with a 3.5kW CO2 tube laser, featuring a resonator type Rofin. It supports a feed length in of 6.5m and out of 4.5m, with a machinable diameter of 220mm. This machine is capable of 3D cutting, handling up to 12mm wall thickness for steel and 6mm for both aluminium and stainless steel. Contact us for more information about this laser cutter.

3000 x 1500mm Sheet 6500mm Tube length 3000w IPG FIBER

8500mm Bunker Loader 4500mm Discharge System Rofin DC025 2500w Year: 2006 Modification to Process upto Ø152.4mm Dust Extractor

Year of construction: 2010 Workspace: Tubes 12-220 mm diameter, Rectangular, oval tubes up to envelope circle 285 mm 3D cutting head, Laser type: 3.5 kW Rofin DC 035, Control: Siemens 840D. Automatic nozzle change, Aspirator Bundle loader and other extras. Machine in use.

LASER BLM ADIGE COMBO Year 2007, 3500 Watt Rofin DC035 Working area 3000x1500 Automatic loding/unloading . Workable tube dimension : min. 16 mm. max 220. Max tube dimension at loading is 6000 mm. This Combo at the moment is unlicensed for the tube license. The tube software Adige BLM license can be purchased easly. The price of this Combo without tube license is Euro 27.000 The price of this Combo whit the tube software Adige BLM license is Euro 52.000 The laser is visible during daily production in the factory. It is in the North of Italy

Automatic tube cutting machine ADIGE TT640 Adige saw model TT 640. Straight cuts only, for steel or non-ferrous tubes from 15 to 80 mm diameter. Equipped with automatic strap loader for bars up to 6m50. Unloading for lengths up to 1500mm. In perfect working order. Delivery and installation possible

Cutter with deburrer Adige TT640 cutter Adige ST660 deburring machine, The machine is in perfect condition and completely serviced. It has a new head motor, new jaw prisms and new ST660 chains among many other changed elements, it is ready for operation. Max cutting length with or without deburring: 1500 mm. Min/max diameter: - Round: 10 to 80 - Square: 10x10 to 70x70 - Rectangular: 15x10 to 80x70. Min/max cutting thickness: full bar 12 to 35 Min/max inlet length: 2500 to 6500 mm Min/max single cut output length: 50 to 1500 mm Cutting and planing output length min/max: 150 to 1500 mm Cutting head motor power: 400V 2V 1400/2800 rpm 3.5 kW

Description BLM Group ADIGE SYS ADILAS 3015 source IPG 3000 Watt YEAR REVIEW 2019 TECHNICAL DATA Manufacturer / Manufacturer: BLM Group ADIGE SYS Type / Type: ADILAS Laser rated output / laser power: YLS - 3000 Watt IPG Fiber / FIBER Year / Year: 2010 Working area / Work area: 3000 x 1500 x 100 Control / Control: Siemens Sinumerik MAX Fe / steel / St. / mild steel: 20 mm MAX Stainless Steel / VA / INOX: MAX Aluminum / Aluminum / Al: 15 mm 6mm MAX Aluminum / Aluminum / copper and brass: 6 mm Max LOAD / Maximum sheet weight: 900 kg Speed axes / Simultanous axis speed 235 m / min Accuracy / Positioning: +/- 0.1mm Dimension / Size: 8000x9000x4000 Power / absorption: average 30kW Other info: FIBER IPG Technology Ytterbium Laser System YLS - 3000, PRECITEC d.30 f200 head, Donaldson Torit DCE fume extraction system, calcium carbona ...

New controls for Adige circular saws

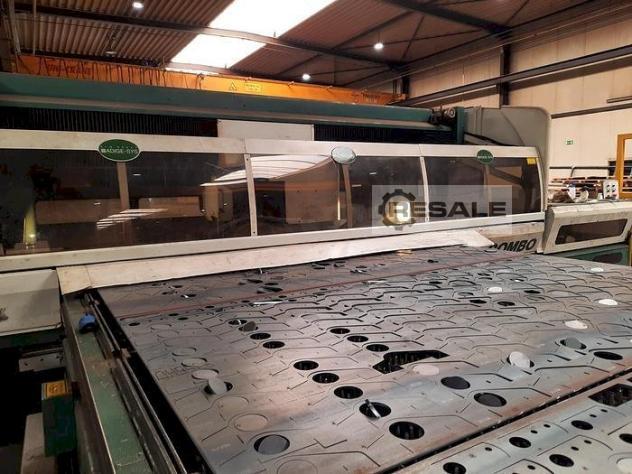

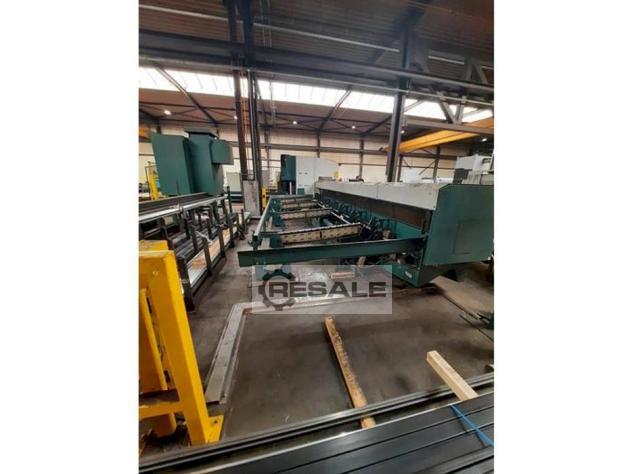

BRAND: ADIGE YEAR: 2010 MODEL: SYS LT COMBO APPLICATION TYPE: LASER CUTTING LOCATION: BELGIUM MACHINE TYPE: LASER CUTTING MACHINES (CO2) AVAILABILITY: IMMEDIATELY Technical Information CONTROL UNIT BRAND: ROFIN MAIN DRIVE LASERPOWER: 3,5 KW LASER TYPE: ROFIN DC035 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MAX BAR LENGTH: 6500 MM - MAX. FINISHED PIECE LENGTH: 6000 MM - MINIMUM - MAXIMUM SECTION (ROUND) IN DIAMETER: 16 - 225 MM - MINIMUM - MAXIMUM SECTION (SQUARE): 16 X 16 MM - 160 X 160 MM - MINIMUM - MAXIMUM RECTANGULAR SECTION: 16 X 16 MM - 200 X 100 MM - MAXIMUM BAR WEIGHT: 200 KG/BAR OR 35 KG/M - MAXIMUM FINISHED PIECE WEIGHT: 100 KG - MAXIMUM LOAD CAPACITY OF THE TABLE (THICKNESS PLATE): 20 MM QUALITATIVE MACHINE BENEFITS: - GOOD CONDITION

Laser for cutting pipes and profiles ADIGE LT 722D is in good technical condition. By agreement, it is possible to see under the current. It can cut open and hollow profiles up to a length of 6500mm, with min. 10mm max. diameter 120mm. Automatic unloader for processing products with a length of max.: 4500 mm with the possibility of sorting products. Cooling equipment, extraction equipment, documentation for the machine. Regular service and prescribed maintenance. Operating hours Status 01/19/2024 – Computer: 87,001 h; High Voltage: 80.260 h; Counter: 81,444 Machine weight: 9000 kg Laser power: 2500 W Max. workpiece weight: 100 kg Pipe size max.:: D 140 mm Size of profiles min - max.:: 30x20 - 120x80 mm Automatic loader for processing bars with a length of max.: : 6400 mm Machine dimensions lxwxh: 10514x4600x2237 mm

Inv. Num. : 6674 Type: ST 660 Producer: ADIGE Created: 1996 Parameters: Nominal Current: 16.5 kW Min. cutting length: 93/300 mm Tube length: 2000-7100 mm Tube diameter: 14x2-60x2.5 mm Machine weight: 1700 kg

Ref.Nr. 00809 Description of the system 3D FIBER laser cutting machine Manufacturer: BLM ADIGE Model LT Free Year of construction 2017 Number of axes of laser head 5 axes Laser power 2000 watts Operating hours (15.04.2024) 869 h With radiator With extraction system Sideros - Footprint: without suction And Radiator Length: 5.50M Width:3.70M Height:4M (Radiator and extractor: side by side, length 3m, width 1.70m, height 2.70m) Floor space: approx. 24sqm Customer has only cut stainless steel 4mm so far. (According to the manufacturer, you can cut up to 6mm thicknesses. Until now, the machine has been used for machining stainless steel housings Without software - (customer uses in-house software) Supply voltage 400V +-10% Power consumption 16 kVA Technical condition: The laser is in very good technical condition Maintenance was carried o ...

Laser cutting machine for tubes BLM Built in 2003 Laser 2kW / 2000 Watt Technical condition: very good, ready to use Bela de system with bundle loader Automatic loading up to L = 6500 mm Automatic unloading up to L = 4500 mm Max pipe diameter rnd 140 mm Max square wave tube 120x120mm Transport, installation on demand

Hydr. Metal circular machine Technical data: -Saw flaked diameter up to 350 mm -Cut range at 90 ° -around 110 mm -four-edged 100 mm -rectangle 180 x 40 mm -or 160 x 85 mm -at 45 ° -around 110 mm -four-edged 100 mm -Walking adjustable Li + Re ever 0-90 ° -2 cutting speeds 16 + 32 m/min -Drive 400 V/1.2/1.8 kW -Feed speed of the saw blade hydr. infinitely controllable -Coolant equipment -Supplusion â?? roller duct 3000 mm -Rebuff â?? roller duct with measure 3000 mm -Space requirements approx. B 650 x H 1650 x T 900 mm -Weight approx. 750 kg

cutting capacity 90 mm, 100 x 70 mm, Machine already ready for transport, machine can be viewed on viewing day for correct assessment.

Round: from ? 12 mm to ? 80 mm Square: from 10 x 10mm to 70x70mm Rectangular: 80 x 60mm Full bar cutting: from ? 12 mm to ? 30 mm Max cutting lenght: 3.000 mm Min cutting length: 50 mm Max. tube Thickness: 3 mm Blade ?: 250 mm Blade Thickness: 2 mm Automatic Tube Charger

Saw blade Ø: 425 mm Cutting range at 90° round: 145 mm Cutting area at 90° rectangle: 340 x 50 mm Cutting speed: 13 - 210 m/min Drive motor: 380 V, 1.3/2.6 kW Space requirement: 1000 x 950 x 1770 mm Weight: 810 kg

saw blade diameter: 350 mm capacity 90 degrees: round: 110 mm capacity 90 degrees: square: 100 mm capacity 90 degrees: flat: 180x40 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The machine was brought from Holland. The machine did not work in Lithuania. You can call or write to us. We can speak and write German and Russian. You can also send messages in English.
